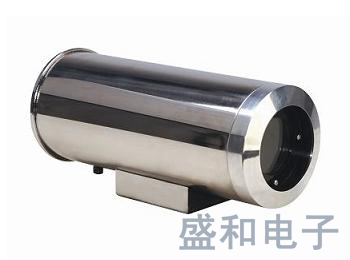

SHL711 Wind Cool Camera Housing

Model: SHL711

Name: Wind Cool Camera Housing

IP Level: IP68

Description:

SHL711 Wind-cooled Camera Housing is made of stainless steel with good corrosion-proof performance. SHL712 wind-cooled camera housing’s end closure is designed in accordance with pinhole lens. Set on the rear cover board, all the lines connects plastics-wrapped tube and pipe to achieve protection. This kind of product has been widely applied to industries of metallurgy、electrical power、glass and building material etc..

? Cooling high-temperature environment ( ≤250℃ ) to guarantee camera’s regular work
? 316L、304 stainless steel optional
? In accordance with IP68 to satisfy the operating needs for extremely adverse environment
? Housing allows for installation of all kinds of CCD cameras. Unit weight 3Kg/4Kg
? To operate in coordination with air pump, hydraulic pump, oily water separator and high-temperature-proof covering

Model		SHL711
Basic Parameter	Manufacturers Standard	Enterprise standard
	Configuration Mode	Dual-layer stainless steel
	IP	IP68
	Cable entries	2 water-proof calbe entries , inner hole Dia.ф10
	Air entry	G1/4”
Mechanical Features	Construction	304、316L stainless steel
	Sight glass dimensions	ф65 mm
	Dimensions (L×W×H)	320×134×151 mm
	Inside dimensions	ф100×280 mm
	Weight	3 kg
Operational Requirement	Operating environment	Applicable to high-temperature、dust and heated splashing material ( slag、liquid iron etc.)
	Operating temperature	≤80℃
	Relative Humidity	≤80% （40℃）
	Atmosphere pressure	86 Kpa ~106 Kpa
	Dust concentration	≤200 mg / m³ ( take cement dust as standard)
	Inlet Air-compression temperature	≤35℃
	Flow of air	0.3 L/s ~0.6 L/s
	Air-compression pressure	0.1 L/s ~0.6 L/s
Power Supply	Voltage	24V DC/220V AC
Power Supply	Current	2 A /0.5 A
Others	Built-in Power supply module	Optional
Others	Cable requirement	High-temperature-proof cable、shield (function: power supply 2×1.0 mm² 、signal 2×0.75 mm² 、video75Ω
