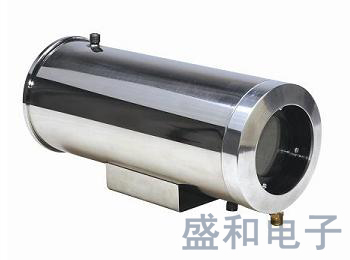

SHL701 Water Cool Camera Housing

Model: SHL701

Name: Water Cool Camera Housing

IP Level: IP68

Description:

SHL701/SHL702 Water-cooled Camera Housing is made of dual-layer stainless steel, which achieves cooling by cooling water from interlayer. Its front cap prevents dust by compressing air to form damp sheet. With good corrosion-proof performance, it could be used in the environment with high temperature, large amount of dust and corrosive gas. This kind of product has been widely applied to industries of steel、cement and electrical power for improving production efficiency and working conditions and reducing labor intensity.

l Cooling high-temperature environment ( ≤250℃) to guarantee camera’s regular work

l 316L、304 stainless steel optional

l In accordance with IP68 to satisfy the operating needs for extremely adverse environment Housing allows for installation of all kinds of CCD cameras. Unit weight4Kg/8Kg

l To operate in coordination with airpump, hydraulic pump, oily water separator and high-temperature-proof covering

Model		SHL701
Basic Parameter	Manufacturers Standard	Enterprise Standard
	Configuration Mode	Dual-layer stainless steel
	IP	IP68
	Cable entries	2 water-proof cable entries , inner hole Dia.ф10
	Water inlet / outlet	G1 / 4”
	Dust removal window interface	G1 /4”
Mechanical Features	Material	304、316L stainless steel
	Sight glass dimensions	ф65 mm
	Dimensions (L×W×H)	300×134×151 mm
	Inside dimensions	ф100×280 mm
	Weight	4 kg
Operational Requirement	Operating environment	Applicable to high-temperature、dust and heated splashing material ( slag、liquid iron etc.)
	Operating temperature	0°~+250℃
	Relative Humidity	≤80% （40℃）
	Atmosphere pressure	86 Kpa ~106 Kpa
	Dust concentration	≤200 mg / m³ ( take cement dust as standard)
	Inlet water temperature	≤35℃
	Flow	0.3 L/s ~0.6 L/s
	Inlet hydraulic pressure	0.1 Mpa
	Air-compression pressure	0.1~0.4 Mpa
	Flow of air	0.3~0.6 L/s
Power Supply	Voltage	24V DC/220V AC
Power Supply	Current	2 A /0.5 A
Others	Built-in power supply module	Optional
Others	Cable requirement	High-temperature-proof cable、shield (function: power supply 2×1.0 mm² 、signal 2×0.75 mm² 、video75Ω
