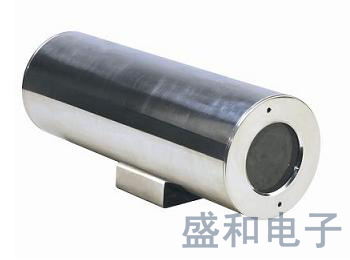

SHF801 Ex Fix Housing

Model:	SHF801
Name:	Ex Fix Housing
Ex Mark:	ExdⅡCT6/DIP A20 TA,T6
IP Level:	IP68

Description:

SHF80 series Explosion-proof Camera Housing is designed for use in explosive atmosphere such as gas group ⅡC (typical gas vapours: hydrogen, acetylene, ethene, coke-oven gas and methyl ether etc.) as well as flammable dust. The housing is designed to prevent explosion by containing any heat, sparks or flames generated. This prevents potentially explosive atmosphere or materials outside the equipment ignited. SHF800 is equipped with wiper to keep the glass clean. It accommodates most camera / lens combinations with sunshield and wiper matched. It transmits real-time video and on-the-spot scanning, with functions of real-time video storage and remote on-line transmission etc..

Technical Data:

Model

SHF801

Certification Parameter

Manufacturers Standard

GB3836-2000, GB12476.1-2000

Configuration Mode

front and rear caps with threaded flameproof joints

Ex-proof Mark

ExdⅡCT6 / DIP A20 TA,T6

IP

IP68

Operating Temperature （℃）

-25-60_note

Cable Entries

2×G1/2”Ex-proof cable entries, Dia. of inner hole Φ12

Mechanical Features

Material

Carbon steel / Stainless steel (304/316/316L)

Sight Glass Dimensions (mm)

Φ67

Outside Dimensions

350×150×165

Inside Dimensions (mm)

Φ112×300

Weight (Kg)

6

Power Supply

Voltage (V)

12VDC/24VDC/220VAC

Current (A)

1 / 0.5 / 0.1

Others

Optional

Sunshield, power supply module, Inner heating

Cable requirement

Power supply: 2X1.0 mm²（24V AC）/ 2×0.75 mm² (220V AC ) Communication: Shield 2X0.75 mm² Video: 75Ω
